Wing Foil Race board Voga Marine Speed Challenger
Please contact us for shipping outside EU, we'll figure it out.
Our boards are all available in full custom shapes, sizes and finishes according to your tastes, your favorite spot, your program and your progress objective. For tailored advice, do not hesitate to contact us by email, telephone or Whatsapp.

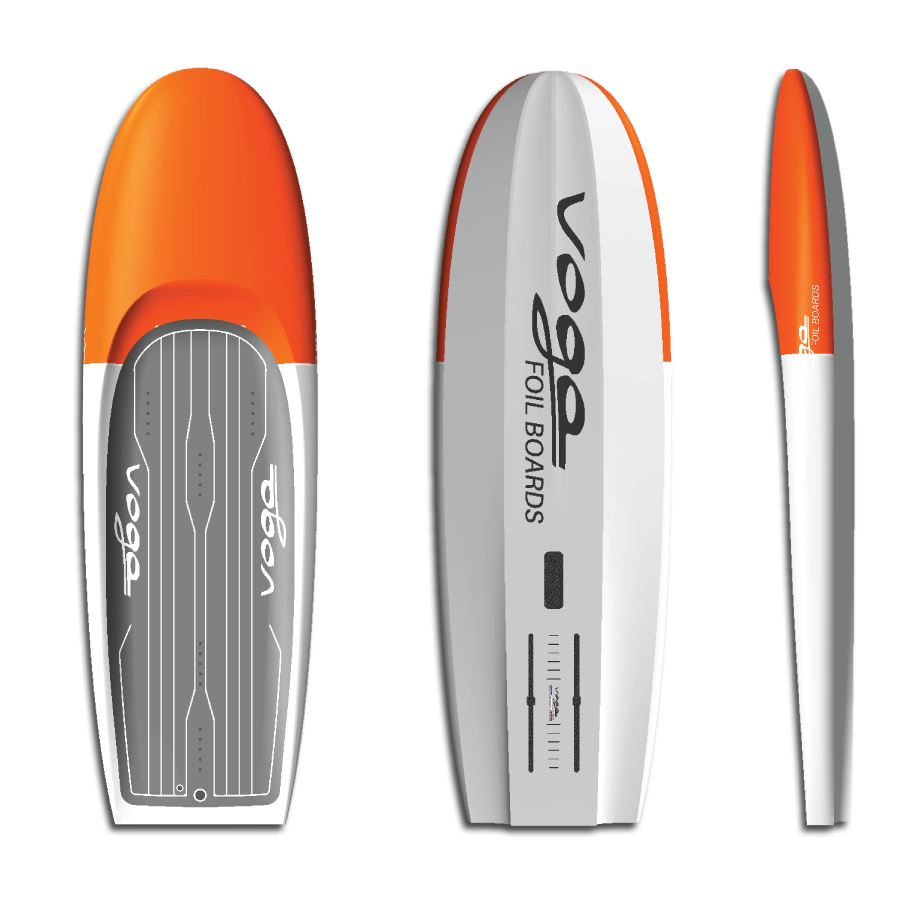

Voga Marine Speed Challenger
The Voga Marine Speed Challenger is a concentrate of composite technology developed in collaboration with pro riders and Seatech, University of Toulon as part of an engineering thesis for mechanical engineering.
This board incorporates all of our latest innovations with an optimized sampling of hybrid carbons and core materials for exceptional performance ratios.
The shape, inspired by kite foil racing, is designed to take off quickly and waste as little time as possible on touch-and-go thanks to perfect volume distribution.
Our Pure Race in US or tuttle was developed specifically to break speed records and take podiums at world class events like Défi Wing or the Wing Foil Racing World Cup Series. Full carbon US box included, optional tuttle box mount.
Materials: Carbon fiber, Entropy CLR© biosourced epoxy, Nomex© honeycomb, Airex© PVC foam, EPS core, upcycled Airbus© carbon fibers, Map Yachting© boat varnish.
Colors available: Orange, Raspberry, Turquoise, Yellow, Custom Color.
Full customization available. Please allow 24h to get back to you with a design proposal.
All our race boards are now built in honeycomb/carbon sandwich
High performance carbon US Box included
Footstrap inserts, custom configuration
Gore-Tex© venting valve
FCS© leash plug
Size variants:
Length | Width | Volume |
---|---|---|
4'11" | 18 1/2" | 60l |
4'11" | 21 1/2" | 75l |
Custom Size |
Board sold alone, stainless screw set included.
The Shape
A hull inspired by kite foil race boards that is narrow enough to allow the wildest angles with a progressive rocker. We reduced the wet surface as much as possible to speed up takeoff.
The lowered deck improves stability. It ends with a bulb on the front quarter to improve aerodynamics by fairing the deck. At more than 30 knots, aerodynamics do play a significant role.
The devil is in the details: our US rails and full carbon tuttle boxes directly integrated to a carbon sandwich structural beam offer optimal stiffness for precise handling and more comfortable touch and go.
Our Speed Challenger range has been designed for racing and speed or for “Défi Wing” type events.
Technology
Carbon / Honeycomb
Pro Build
A | Low density EPS foam core 3D engineered in France |
B | Nomex© Aramid honeycomb Full sandwich deck-side from rail to rail |
C | Twill carbon fabric 2 sandwich layers with extra reinforcement strips on rails |
D | Yacht-grade EVA pads Custom made by our local partner |
E | Automatic Gore-Tex© venting plug |
F | FCS© leash plug |
Internal Structure
Carbon IPN Beam
A | Hull-side carbon fabric 2 layers |
B | Twill carbon fabric 2 sandwich layers with extra reinforcement strips on rails |
C | Nomex© aramid honeycomb Full sandwich deck-side from rail to rail |
D | Airex© / carbon sandwich structural beam Deck / hull interface, IPN beam principle, extreme stiffness |
E | In-house US-standard foil box plate Vacuum infused Carbon / Soric© double sandwich plate, routed to US Box standards and secured with structural epoxy glue, then laminated under one layer of carbon |
F | US-standard box rails Airex© / carbon sandwich bloc routed with US rails, laminated top and bottom and bound to the internal beam |
